Author: James B. Ackman
Date: 2013-09-04 10:54:02
Tags: paper, draft, manuscript, literature, research, #results, retinal waves, spontaneous activity, development, calcium domains

Structured population activity across developing isocortex

Structured neural activity across developing cerebral hemispheres
Mesoscale mapping of neural activity across developing cerebral hemispheres

Abstract

The cerebral cortex exhibits spontaneous and sensory evoked patterns of activity during fetal and postnatal development that are crucial for the activity-dependent formation and refinement of circuits [#Katz:1996]. Knowing the source and flow of these activity patterns locally and globally is crucial to understanding self-organization in the developing brain. Here we show that neural population activity within newborn mice in vivo is characterized by spatially discrete domains that are coordinated in a state dependent and areal dependent fashion throughout developing isocortex. Whole brain optical recordings from neonatal mice expressing a genetic calcium reporter showed that ongoing activity in the cerebral cortex was characterized by distinct and repetitively active domains measuring hundreds of microns in diameter. Cortical domain activity depended on brain state with periods of localized and global domain synchrony exhibiting positive and negative correlations to motor behavior respectively. Furthermore, domain activity exhibited mirror-symmetric patterns between the hemispheres, with strong correlations between cortical areas that correspond to the default-mode network in primates. This study provides the first comprehensive description of population activity in the developing isocortex at a scope and scale that bridges the microscopic or macroscopic spatiotemporal resolutions provided by traditional neurophysiological or neuroimaging techniques. Mesoscale maps of cortical population dynamics within animal models will be vital to engineering future repair strategies and brain-machine interfaces for neurodevelopmental disorders.

Introduction

Brain development requires neural activity and calcium dynamics for establishing proper circuit structure and function. The importance of neural activity in the prenatal and neonatal period can be easily recognized in children exposed to chemical agents affecting neurotransmission during the fetal period that result in severe brain malformations, epilepsy, and mental retardation. Indeed, embryonic limb movements in species ranging from chick to human are thought to be initiated by spontaneous motor neuron activity in the spinal cord and thought to be crucial for activity-dependent development of motor synapses [Schoenberg:2003] [Marder,Lichtmann]. However it is only recently that we have begun to appreciate the underlying patterns of persistent neural activity that in fact exist in the developing brain in vivo. For example, sensori-motor feedback associated with spontaneous movement generated by spinal motor neurons triggers synchronized 'spindle-burst' potentials among cells in somatosensory cortex [Yang:2009][Khazipov:2004a] before the start of locomotion and tactile behavior. Correlated bursts of activity occur in the developing rat hippocampus in vivo [#Leinekugel:2002] [Mohns&Blumberg]. Spontaneous retinal waves drive patterned activation of circuits throughout immature visual system before the onset of vision [#Ackman:2012] [Hanganu,Colonnese?]. Furthermore, prenatal EEG recordings have demonstrated spindle burst oscillations and slow activity transients in the human infant somatosensory and occipital cortices before birth [#Vanhatalo:2005][#Tolonen:2007]. Nonetheless, a comprehensive account of the structural dynamics of persistent activity throughout the developing isocortex in vivo has not been undertaken.

Results

Ongoing activity in developing neocortex is characterized by discrete domains

Neocortical organization consists of cortical modules tiled across the cortical surface in a topographic fashion such that vertical arrays of cells concerned with specific sensory features are grouped together as columns [#Mountcastle:1997]. Most evidence to date suggests that columns/hyper/macro columns are 300-500µm diameter across species.

  • Cortical column (mini/hyper columns) history (20th century anatomists-- Lorente de No, Mountcastle, Hubel & Wiesel, rakic, etc).
  • Column physiology-- Hubel and Wiesel. Rodent V1?
  • Developmental studies-- fetal monkey ODCs.
  • Rodent barrels (early anatomical emergence from TC input, functional/physiological emergence?).
    • What is known about columns/domains in secondary/association/non-primary sensory representations? Rest of rodent S1 (non-barrel cortex?).
  • Calcium domains of Yuste, Science 1992 paper. [#Yuste:1992]
  • Other slice calcium recordings, patch/gap junctions. In vivo physiology? (Not too many multisite electrode recordings in cortex, spatial resolution issue).
  • Calcium imaging-- Konnerth 'waves' in Ent cortex [#Adelsberger:2005]. For visual cortex, domains activity in extrastriate cortex (Ackman Nature 2012). But S1-- [#Golshani:2009] work in later postnatal-- but activity not obeying domains in barrel cortex-- problem with spatial sampling in the xy and the z for this study?

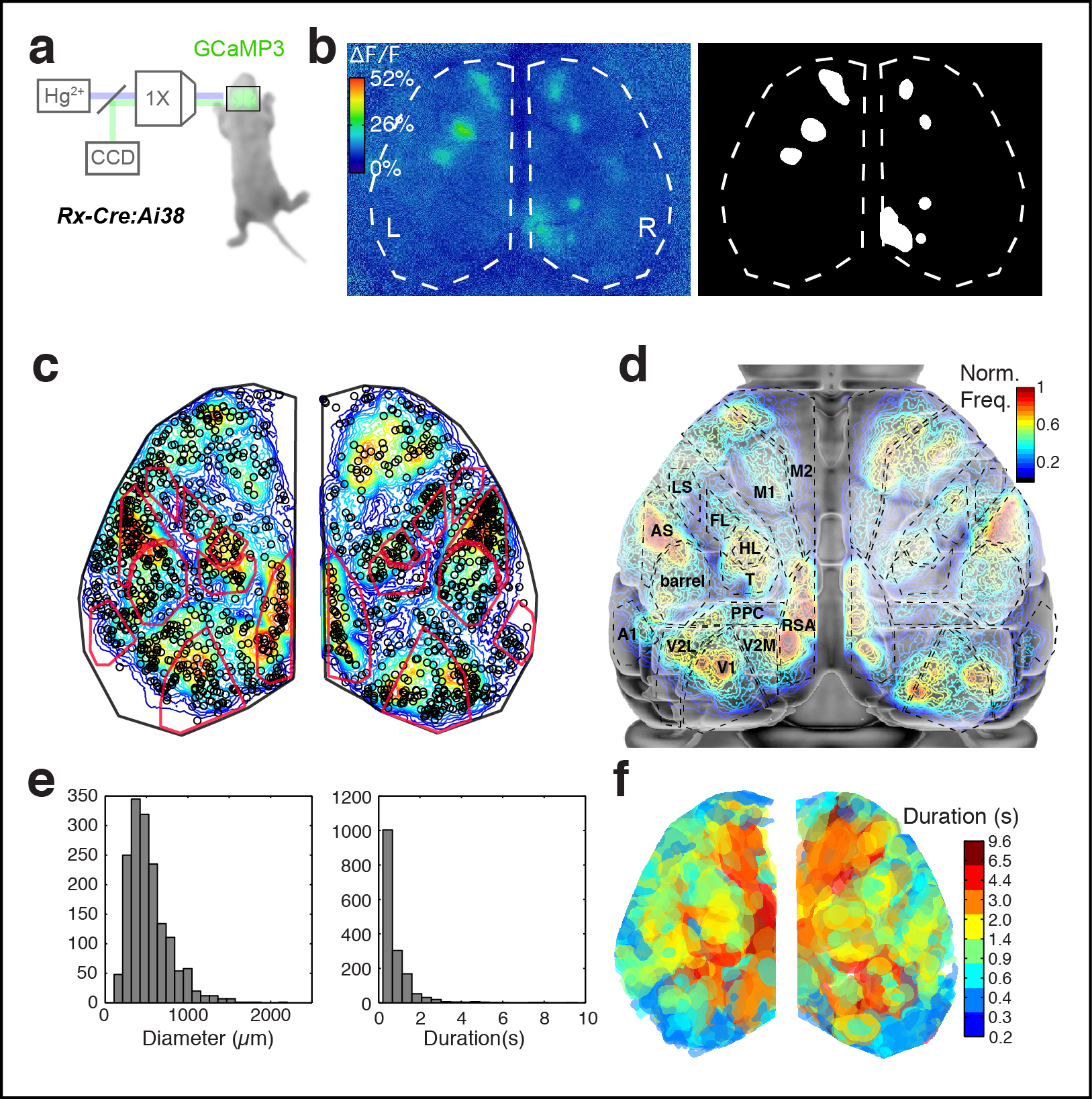

Figure 1. Calcium domains throughout neonatal mouse isocortex. a Experimental schematic. b Single image frame showing calcium domains in both hemispheres at P3 and automatically detected domain masks. c Domain centroid positions for 10 min recording. Points are overlaid on a normalized pixel activation frequency map and primary sensory areas determined by thalamocortical inputs at P7 are outlined in red. Notice rows of whisker barrels are evident in the structure of domain centroid positions. d Functional activity map at P3. Based on pixel activation frequency from detected domains in a single 10 min recording. Map is overlaid on cortical areal parcellations. Notice localized maxima and minima of functional activity between areas that approximate known anatomical cortical area boundaries and the mirroring of map structure bilaterally. e Histograms showing the distribution of spatial diameters and durations for calcium domains. f Domain duration map.

metric mean min max unit
diameter 396.0 22.7 2383.5 µm
duration 0.6 0.2 14.6 s
frequency 2.9 domains/sec/hemisphere
[Table 1: Domain statistics]

Cortical activity is mirrored between the hemispheres

  • Inter hemispheric functional connectivity, importance for autism, schizophrenia. Maybe an activity-dependent mechanism for commisural connectivity.
  • olavarria work, evidence for inter hemispheric activity dependence
  • [#Hanganu:2006], 30% of spindle bursts correlated across hemispheres
  • Activity correlated in anterior-posterior and medial-lateral directions
  • Mirror symmetric and non-mirror symmetric patterns
  • Regional effects, more corr anticorr in certain regions?
  • State dependent corr?

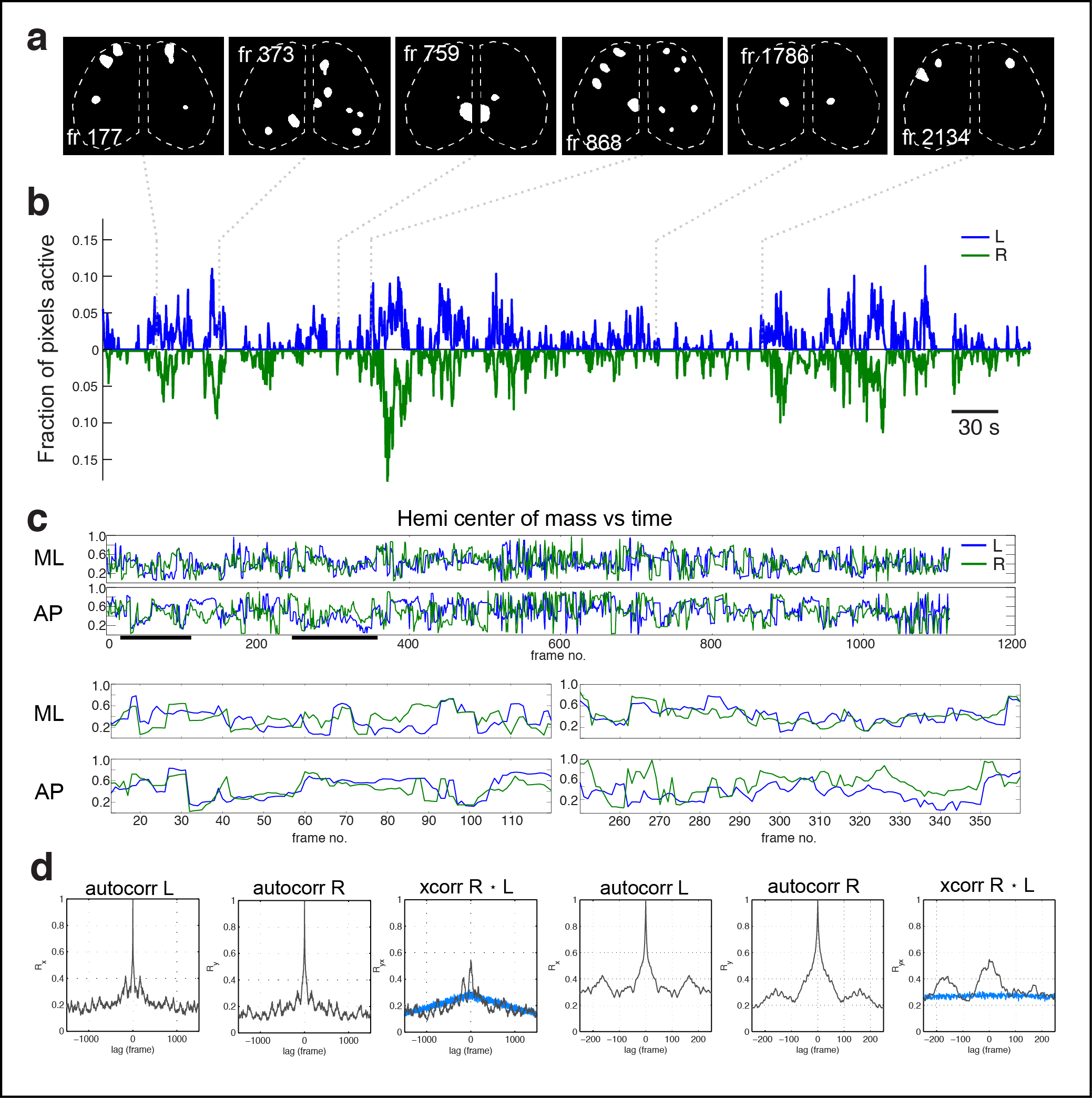

Figure 2. Cortical domain activity exhibits bilateral symmetry. a Examples of domains exhibiting spatially symmetric activations. Notice most timepoints contain a mixture of symmetric and asymmetric domain activations. b Cortical active fraction timecourses for both hemispheres. c Hemispheric domain centers of mass for coactive frames in a recording along medial-lateral (ML) and anterior-posterior (AP) extents. Bottom left panels show the periods indicated by black bars at expanded view. Pearson's correlation: ML, p = 1.1591e-28; AP, p = 7.0982e-07. d Hemispheric autocorrelation and cross-correlation functions for cortical activity at all and short time lags. Notice the peaks above gaussian distributed noise (blue traces).

Conclusions: The two hemispheres seem to be mostly synchronized, though it’s possible the R hemispshere (which is also the slightly more ‘active’ hemisphere, see stats table below) leads the left by a bit. The asymmetric peak at –150–175frames is interesting. That would be about 30–35 sec.

The big secondary peaks around ±30 sec is present in both autocorrs and xcorrs and is far above the random normal xcorr baseline (blue trace). In fact there is a periodicity seen in the autocorrs and the xcorrs where there is a dampening oscillation about on this interval! (See ideal dampening frequency in random sine wave example above). This corresponds to a 1/30sec == 0.033 Hz ultra-slow oscillation.

Looking at the above plot showing lags from [–1000, 1000] frames which is ± 200 s, we can see about 5.5 cycles of this underlying dampening oscillation in both autocorr plots. This corresponds to (1000fr*0.2sec/fr)/5.5 => 36.36 sec/cycle => 0.0275 cycles/sec or ~0.03 Hz

Conclusions: So the activity in both hemispheres at postnatal day 3 (P3) clearly exhibits significant spatial correlations in both in the medial-lateral and anterior-extent. This is consistent with and complementary to the fact that the active pixel fraction in each hemisphere exhibits a strong temporal correlation as I found earlier in this report [Temporal correlation of activity][]. The medial-lateral positional correlation is stronger than the anterior-posterior (higher R and lower p value). The total number of coactive frames is numel(y1(~isnan(y1)&~isnan(y2))) == 1114 frames. This is accounts to 37.13% of the movie or 222.8 s. Cortex.L had 1635 actvFrames and cortex.R had 1677 actvFrames which means that each hemisphere was coactive with the other hemisphere 1114/1635 == 68.13% and 1114/1677 == 66.43% of the active time respectively.

Percentage of cortical activity which exhibits corr with motor signal?

lenActvFraction>0 fracCorr timeCorr_s fracCorrPos timeCorrPos_s fracCorrNeg timeCorrNeg_s
2161 0.30032 129.8 0.27441 118.6 0.025914 11.2

Developing cortical networks consist of distinct modules.

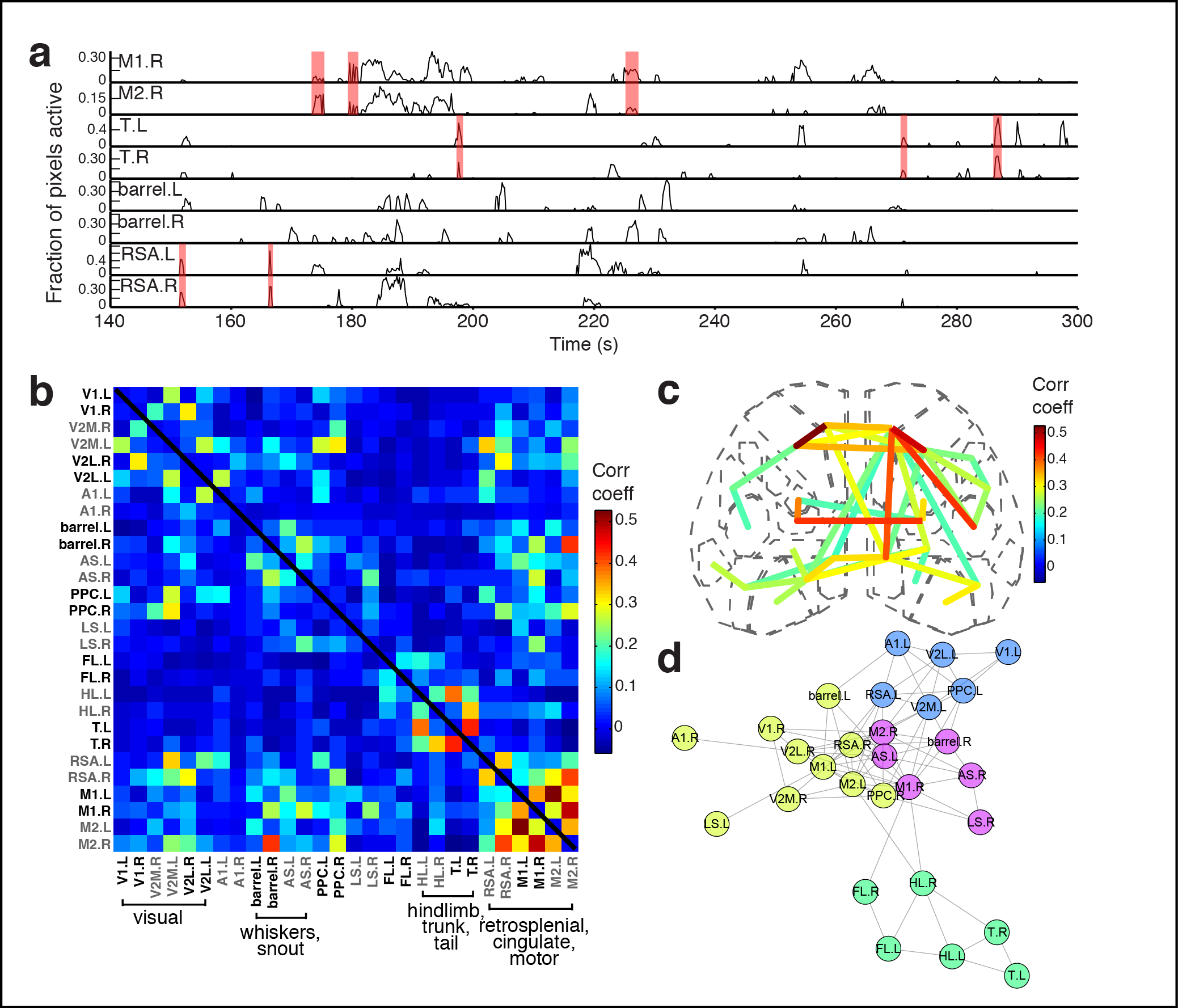

Figure 3. Subnetworks in developing isocortex. a Areal trace examples. Synchronized activations between hemispheres indicated by red links. b Correlation matrix of domain activity among cortical areas. Colormap indicates Pearson's r correlation coefficient values. c Map of cortical area associations for r > 0.2. d Graph of functional connections for r > 0.1. Community structure detected with hierarchical clustering are indicated in 4 colors. Notice that S1-limb/body regions form a distinct subgraph (green).

Cortical domain activity is state dependent

  • EEG slow oscillations not detectable until P10 in rodent.
  • Previously demonstrated that general anesthesia abolishes spontaneous activity in visual system [#Ackman:2012].
  • What about ongoing activity in other cortical areas during early brain development? Surgical procedure relevance.
  • No population calcium activity found during gen'l anesthesia, only slow traveling waves.
  • During anesthesia induction, rapid (<30 s) knock down of discrete domain activity (P3 mouse <120518_09.tif>). Cingulate, retrosplenial activations the last to go-- default mode/resting state network areas last. <120518_09_mjpeg.mov>

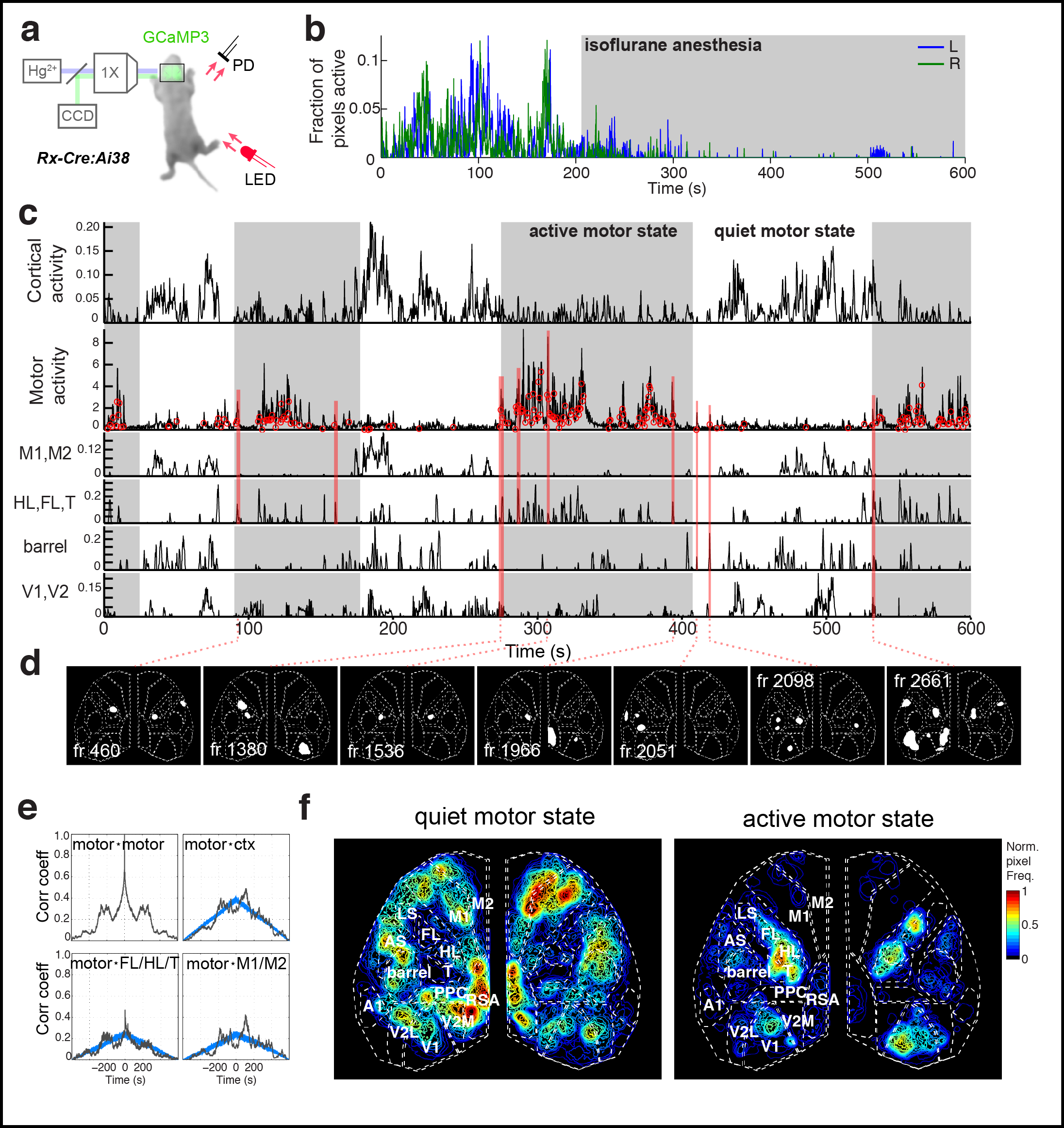

Figure 4. Cortical domains are state dependent. a Experimental schematic. Red light illumination measured with a photodiode (PD) was used to monitor motor activity. b Cortical activity (active fraction) in each hemisphere after onset of gas anesthetic. c Cortical activity and coincident motor activity signals. Gray shading indicates active and quiet motor periods determined by the half-rise and decay times from peak in the low pass filtered motor signal. Active pixel fraction traces for motor (M1,M2), somatosensory (HL,FL,T; barrel), and visual (V1,V2) cortex shown at bottom of panel. Red links show synchronized motor movements and brain activity with different cortical regions. d Single frame domain masks for times indicated in c. e Autocorrelation and cross-correlation functions for motor and all cortical activity or just S1-limb/body and motor cortex regions. Notice the general negative correlation between motor activity and all cortex activity signals (r = -0.1368, p = 5.1919e-14) and the high positive correlation between motor and S1-limb/body signals (r = 0.3019, p = 2.7861e-64). f Pixel activation frequency maps during quiet and active motor periods.

Low pass filtered Moving averages of cortical and motor activity at 10 s and >70 s windows.

Conclusions

  • Neural population activity constitutes discrete spatial and temporal activations among developing cortical areas

  • Cortical activity exhibits symmetrical spatial and temporal activations across the hemispheres

  • Population activity in developing cortex depends motor activity state

  • Population activity in developing cortex is not random-- it exhibits distinct structure in space and time.

  • Ongoing activity in developing cortex is not random-- specifically coordinated in space and time within and among cortical areas between the hemispheres

  • BRAIN initiative (for cover letter to the editor)

    • this work aids at least a couple of the 9 preliminary aims of the Brain project

  • template for assessing altered functional dynamics in models for neurological disorders
